B25 wide beam thin piece detection sensor
Banner has launched a new product, the B25 wide beam thin piece inspection sensor! The B25 wide beam mirror inverse photoelectric sensor can reliably detect various types of packages such as letters, plastic packaging bags and cartons. It has excellent detection performance within a wide beam range of 25mm and is not affected by the shape, position or material of the object being measured.
Product Features
● Detection distance: 2000 mm (equipped with BRT-51X51BM reflector)
● The beam width is 25mm
● 0.5ms response speed
● Integrated IO-Link Settings are simple and convenient: Teaching and Settings can be completed through keys, IO-Link, or remote teaching lines
● Adjustable sensitivity: high sensitivity, standard sensitivity, low sensitivity
● Protection grade IP67, operating temperature -30°C to +60°C
● CE and UL certifications

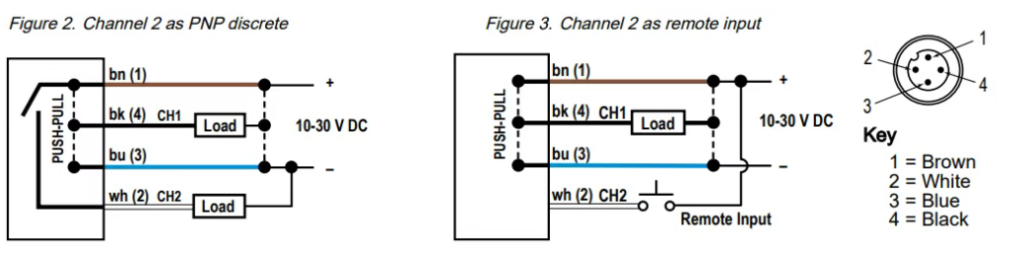

Product wiring diagram

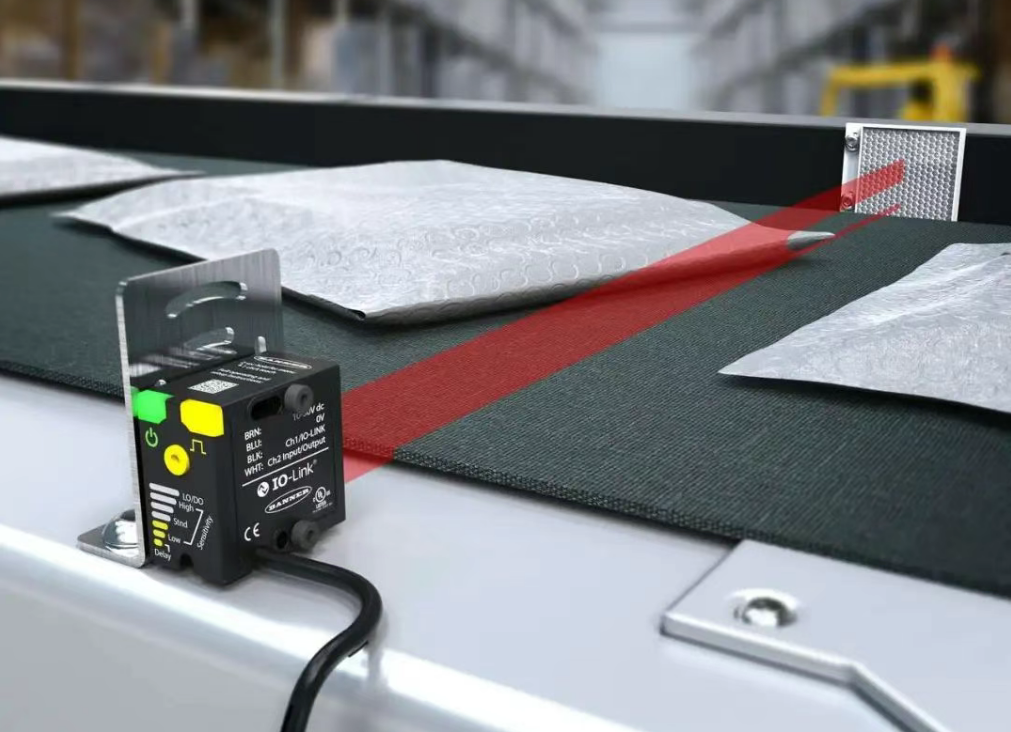

Product application
